ROCKBAR800
2.1-Channel Design Soundbar
Introduction
A 2.1 -channel soundbar system built around an 8" dedicated subwoofer and
a three-way soundbar. HDMI (ARC) carries digital audio from the TV over a
single cable, while Bluetooth 5.0 handles wireless playback. Three preset
modes - MUSIC, VOICE and MOVIE - re-tune the tonal balance for dialogue,
low-frequency effects and music without manual EQ.
Features

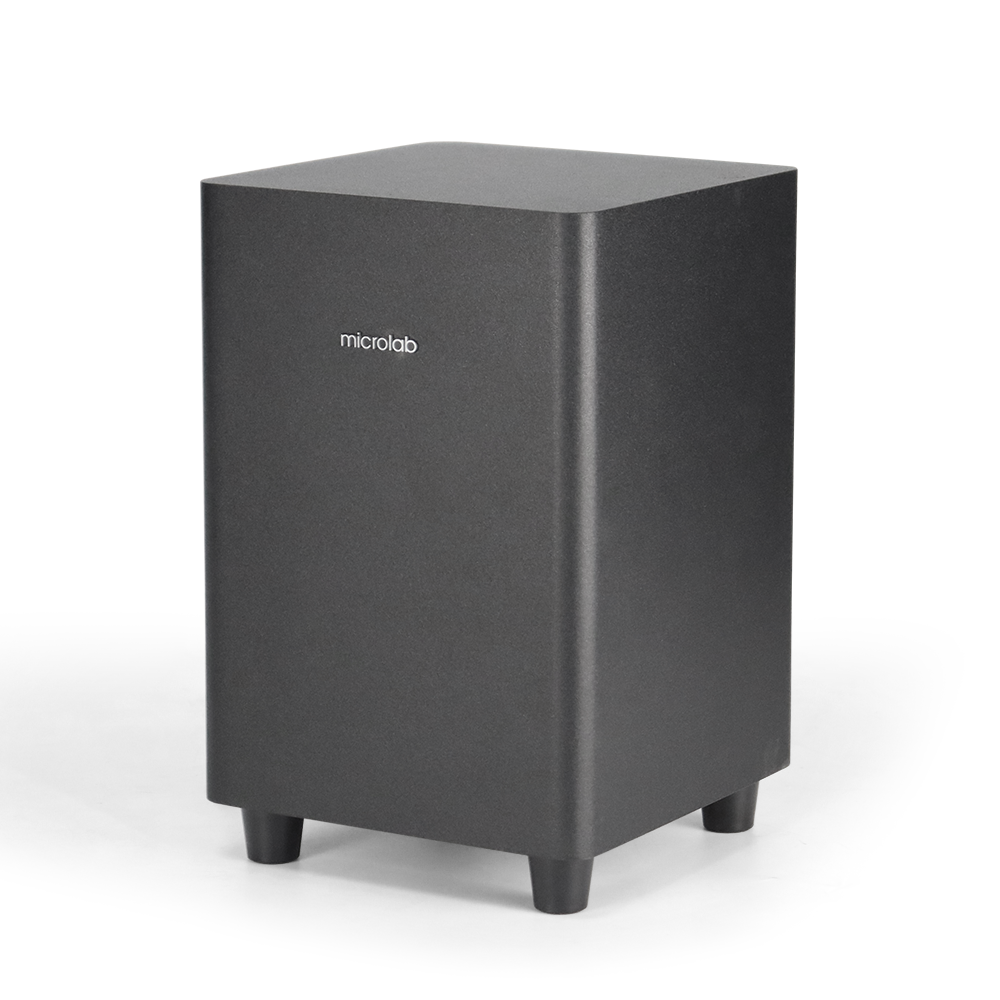

• 8" down-firing subwoofer drops the low end to 35Hz for controlled bass
• Three-way crossover separates tweeter, midrange and woofer onto their own paths
• 100W total output reaches living-room volumes with controlled bass and clean dialogue.
• HDMI (ARC) with CEC - control volume from the TV remote
• Bluetooth 5.0 with 10 m stable connection for phones and laptops
• SUB OUT port adds a second powered subwoofer for a 2.2 setup
Specifications
Bluetooth Versio: 5.0
Output Power: (20W x 2) + 60W
Frequency response: 35 Hz - 20 kHz
Signal/Noise ratio: > 80 dB
Separation: > 50 dB
Drivers:
• Woofer: 8"
• Midrange: 3" x 2
• Dome Tweeter: 0.75"x 2
• Diaphragm 50 x 90mm x 2
Interfaces

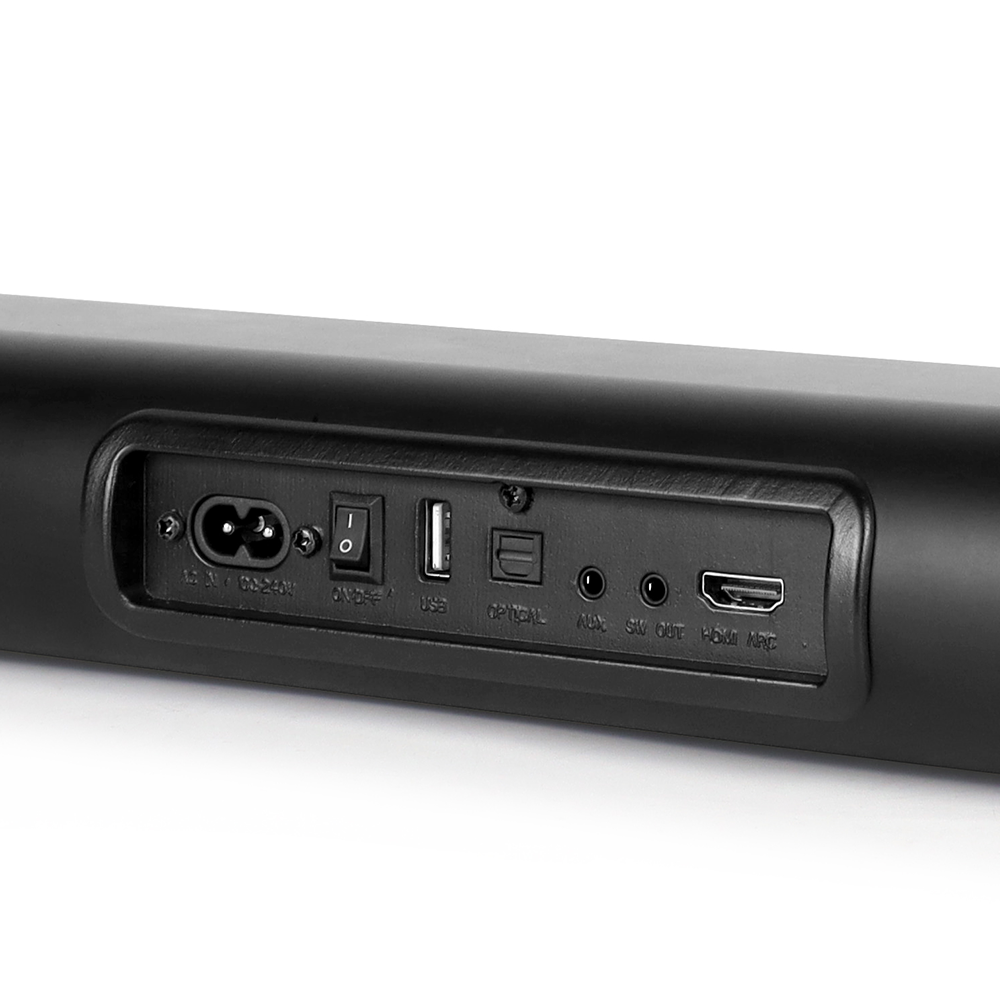

Input: AUX / HDMI(ARC) / OPT /USB / Bluetooth
Output: SUB OUT
Sound Modes: MUSIC/VOICE/MOVIE
Power Supply: 19V DC 5A
Dimensions(W x D x H)
Soundbar: 800 x 96 x 60 mm
Subwoofer: 285 x 285 x 600 mm
