ROCKBAR501
2.1-Channel Design Soundbar
Introduction
Rockbar501 is a 2.1-channel soundbar system that pairs a dedicated

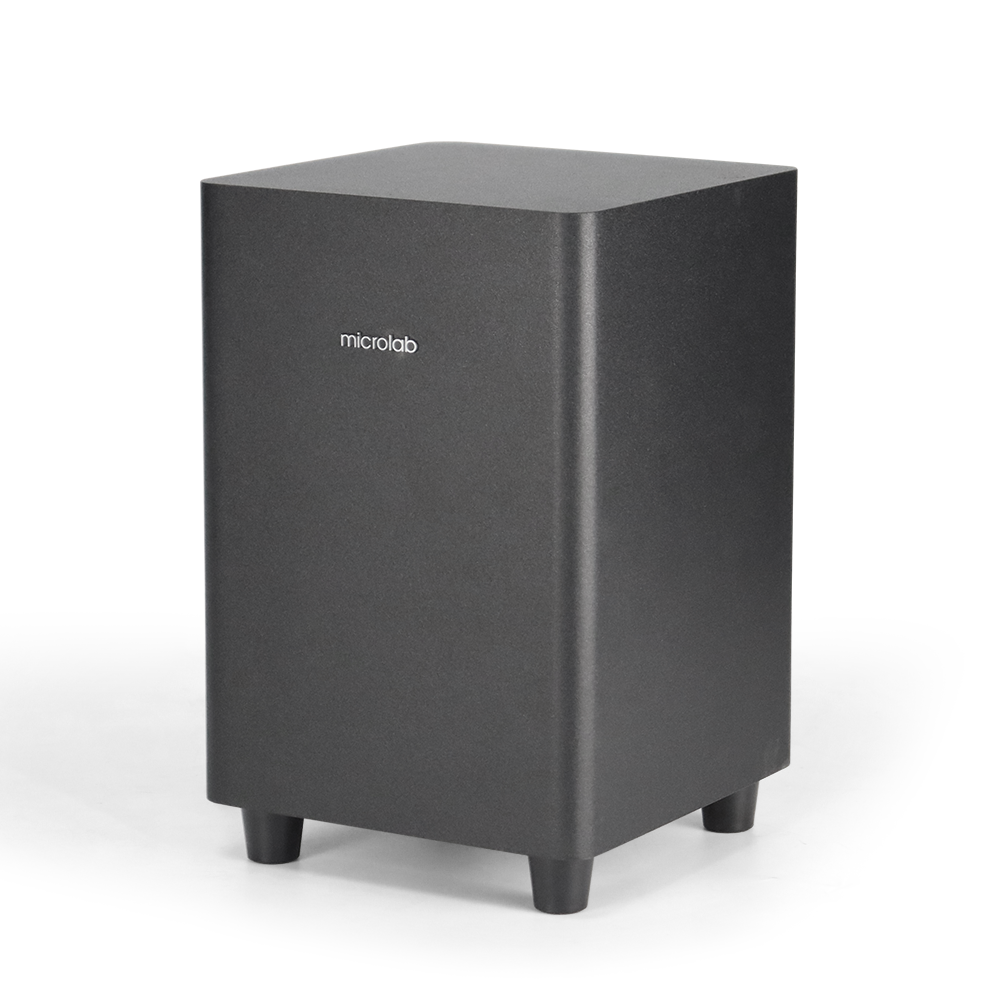

5.25" subwoofer with a two-way soundbar, giving TV and desktop setups
room-filling stereo sound and controlled low end without a separate
Three preset modes - Movie, Voice and Music - re-tune the tone for
ampifier.
Features
• 2.1-channel system pairs a two-way soundbar with a dedicated 5.25" subwoofer
• Three tuned modes place dialogue, music and film tracks where they belong
• HDMI (ARC) carries TV audio over one cable, with Bluetooth 5.0 for wireless playback
• 8-character LED readout shows input source, volume and active mode at a glance
• Wired AUX and optical inputs cover set-top boves and legacy sources
Specifications
Bluetooth Versio: 5.0
Output Power: (15Wx2)+30W
Frequency response: 50 Hz - 20 kHz
Signal/Noise ratio: > 75 dB
Separation: > 58 dB
Drivers:
• Woofer: 5.25"
• Full-range speaker: 3" x 2
• Diaphragm 50 x 90mm x 2
Interfaces

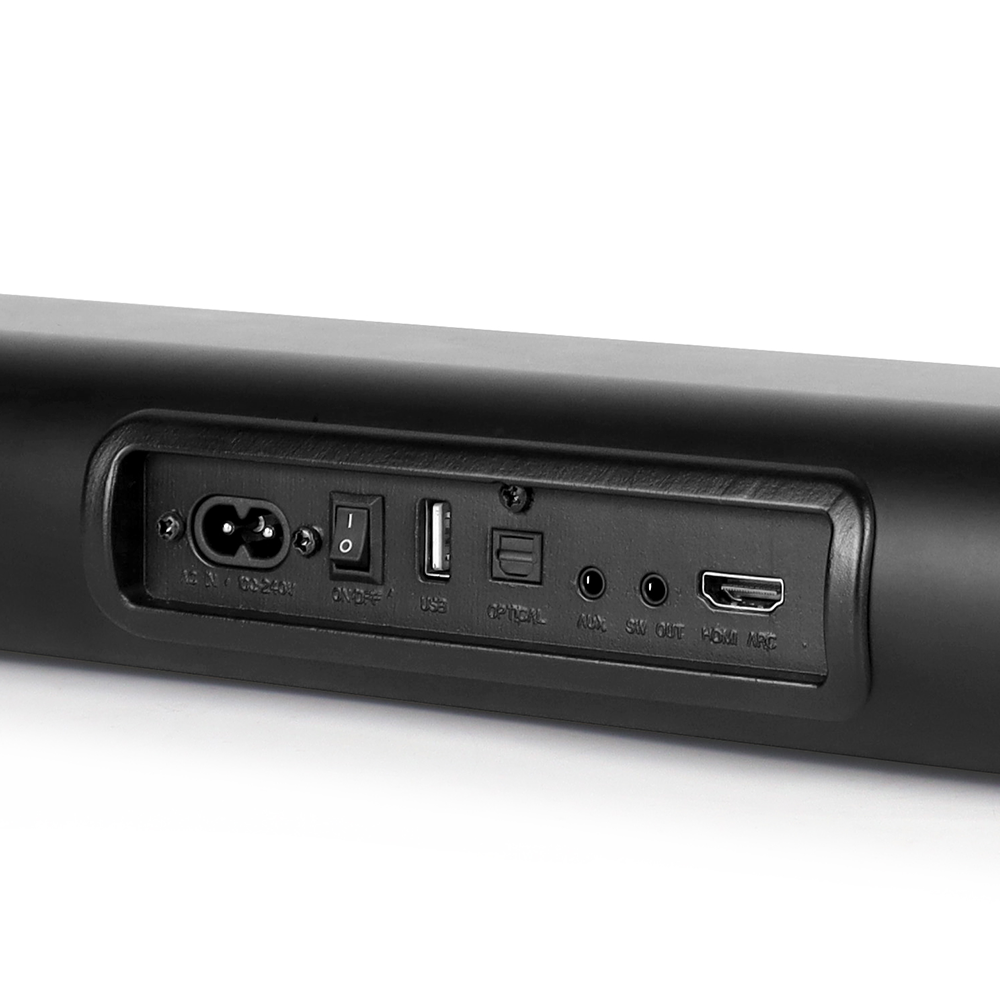

Input: AUX , HDMI(ARC) , BLUETOOTH , OPT
Sound Modes: MUSIC/VOICE/MOVIE
Power Supply: 15V DC 4A
Dimensions(W x D x H)
Soundbar: 590 x96 x 60 mm
Subwoofer: 200 x 200 x 300 mm
