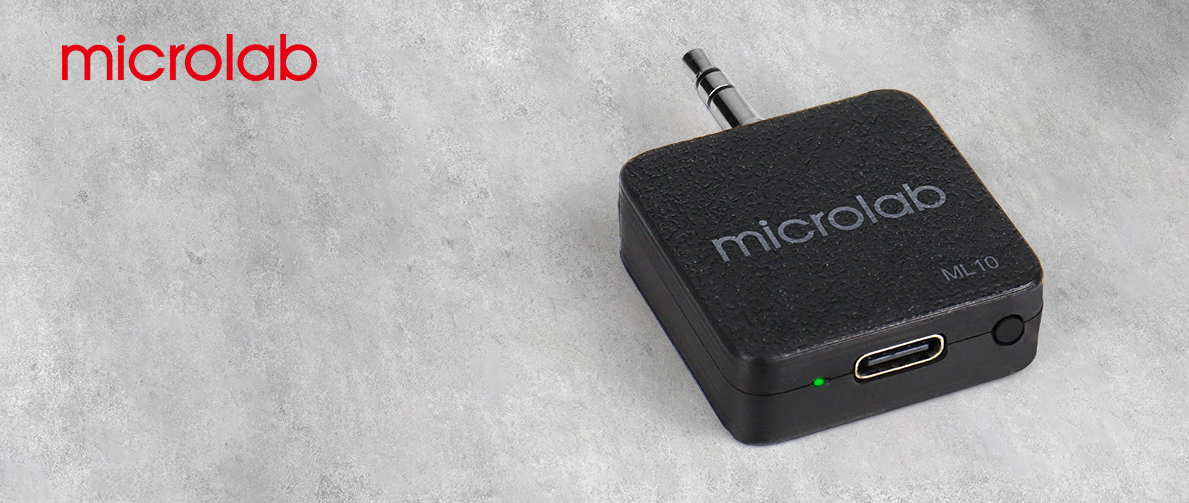

ML10
Bluetooth Receiver
Introduction
This ML10 Bluetooth Receiver is equipped with a built-in DAC decoder
and power amplifier circuit, a portable digital accessory that wirelessly
enables wired speakers, headphones and power amplifiers.
It adds Bluetooth receiving capability to tradifional audio devices without
nafive Bluetooth. Music and call audio can be wirelessly streamed from
mobile phones, tablets, computers and media players, freeing you from
tangled audio cables and allowing you to upgrade your vintage audio
equipment to wireless at low cost.
Features
• Integrated Bluetooth receiver + stereo power amplifier with mature
and stable performance.
• Automafically reconnects previously paired devices upon power-up.
• Dual-color LED indicator disfinguishes pairing standby, connected
and playback status.
• All components comply with RoHS environmental standards.
• Transmission distance: ≥10 meters in open unobstructed environment.
• Shielded cable of 3.5 to 2RCA to prevent ground noise.
Specifications
Bluetooth
Bluetooth Version: 6.0
Transmission Distance: >10 meters in open unobstructed space
Supported Protocols: A2DP, AVRCP, HFP
Audio Codecs: SBC
Electrical Power
Operating Voltage & Current: DC 5.0V, 3mA
Power Consumption: 0.15W
Operating Environment
Operating Temperature: -10 ℃ ~ +60 ℃
Storage Temperature: -20 ℃ ~ +70 ℃
Operating Humidity: 5%~90% RH, non-condensing
Interface Definition

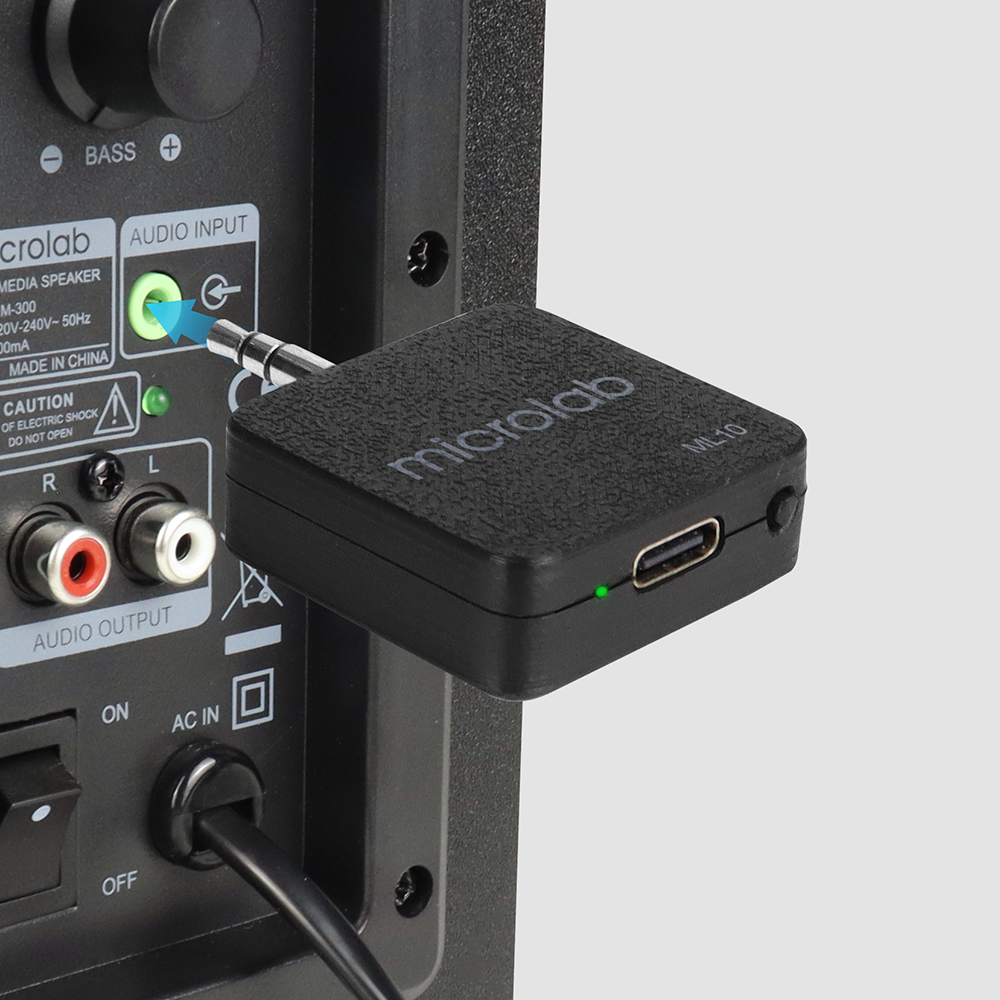

Audio Output:
L/R stereo plug (compatible with 3.5mm audio input jack)

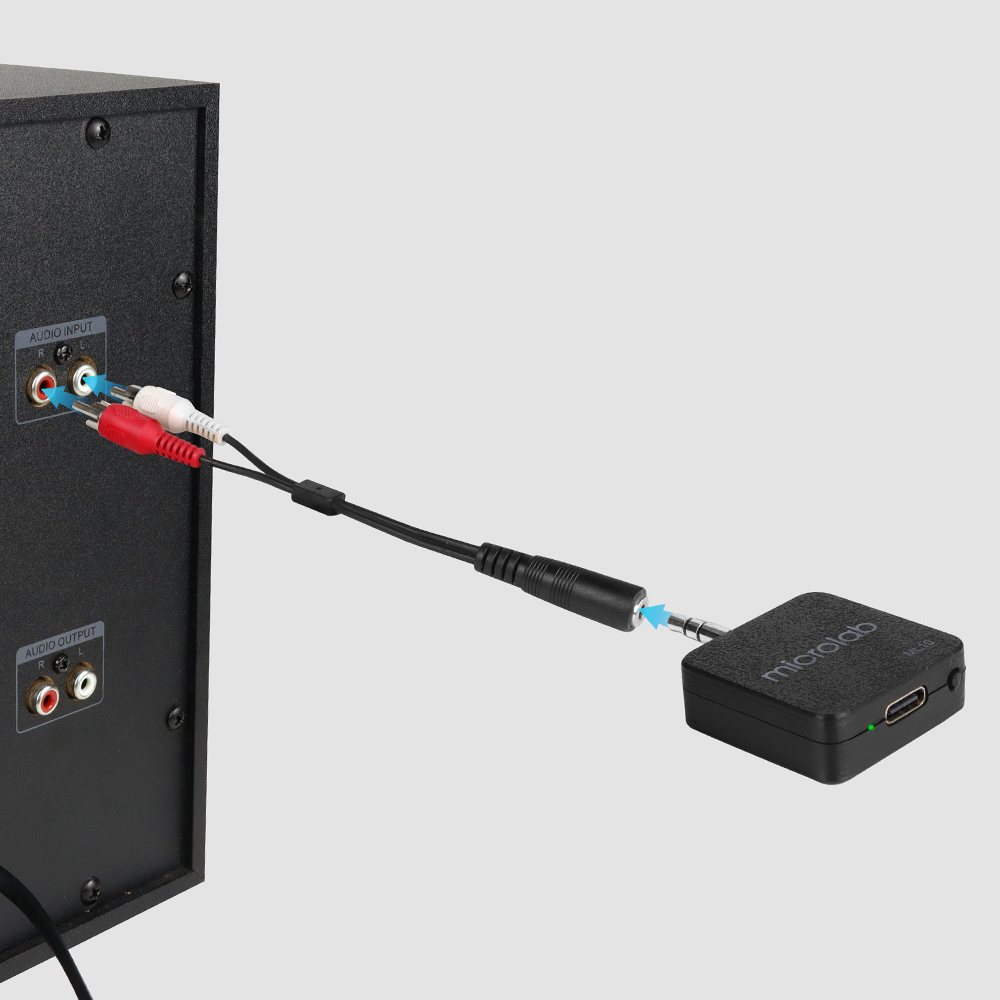

3.5mm Jack to 2 RCA Splitter Audio Connector
Package contents
ML10 Bluetooth Receiver x1

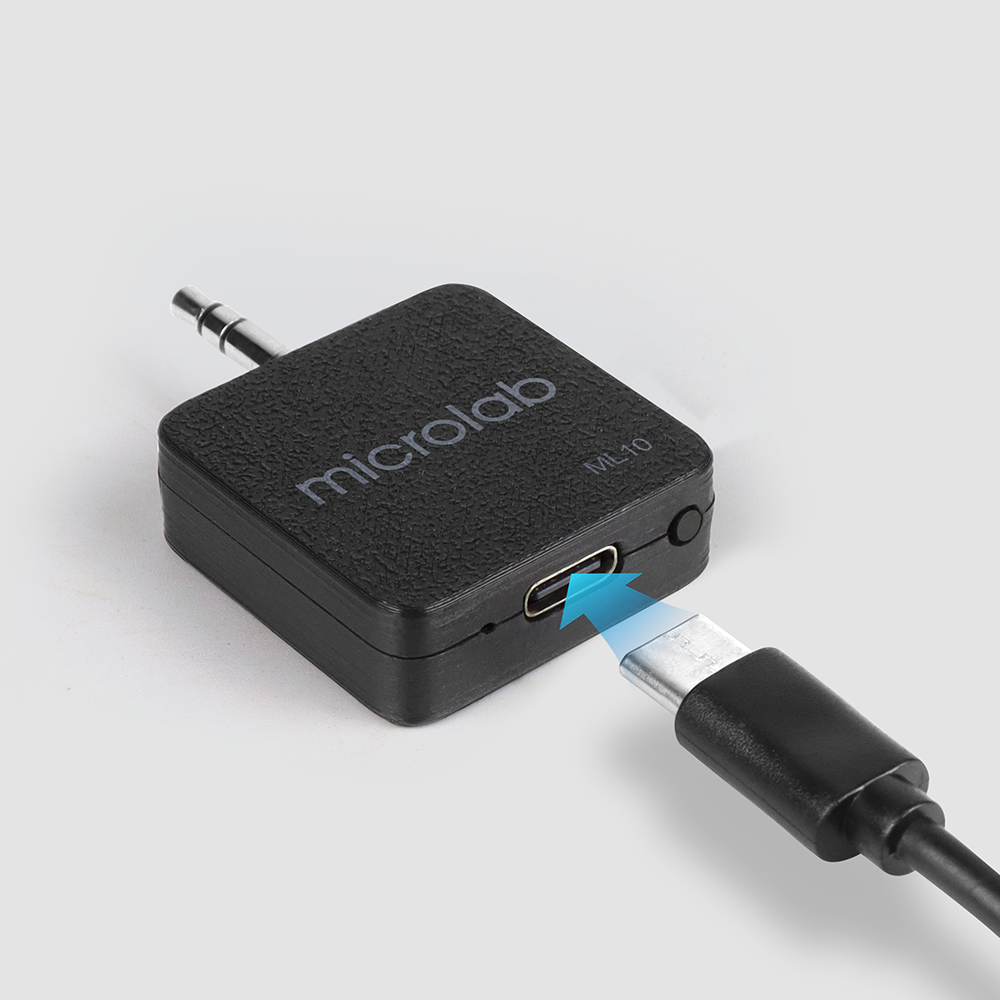

1.2m USB Type-C Power Cable x1
3.5mm Jack to 2 RCA Audio Cable x1(ML10-2 only)
Dimensions
Product Size: L49mm x W32mm x H11mm(including output plug)
Product Net Weight: 10g
Giftbox Dimension: L100 x W40 x H40 mm
Giftbox Gross Weight: 47 g (ML10-1)
63 g (With 2RCA cable, ML10-2)
Export Carton Dimension: L405 x W245 x H510 mm
Carton Gross Weight:ML10-1: 15 kg (300sets)
ML10-2: 19.8 kg (With 2RCA cable, 300sets)
